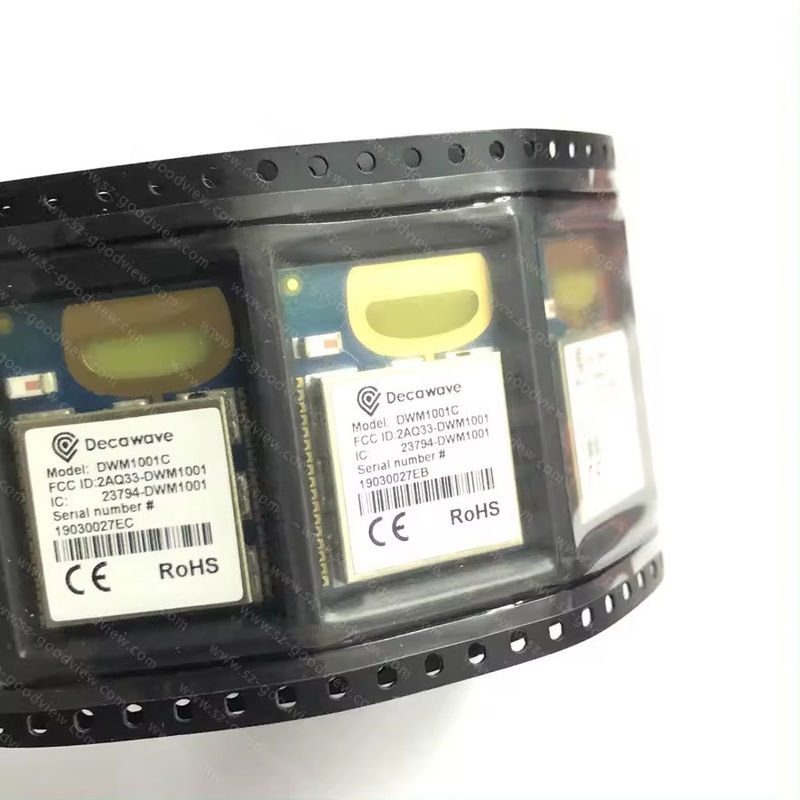

DWM1001C UWB Transceiver Module 2.4GHz 6.5GHz Integrated DWM1001 DWM1000 Tracking

Product Details

Place of Origin: China

Brand Name: QT

Model Number: DWM1001C

Payment & Shipping Terms

Minimum Order Quantity: 1.00 piece(Min. Order)

Price: $16.99 - $17.99/piece

Packaging Details: Export standard pack

Delivery Time: 7-10 work days

Payment Terms: Western Union, T/T, MoneyGram, Paypal, L/C

Supply Ability: 1-500 Pieces per 15 days/ >500 Pieces per To be negotiated

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                6.5GHz UWB Transceiver Module, 2.4GHz UWB Transceiver Module, DWM1001C UWB Transceiver Module


Application:	UWB	Chipset:	DWM1001C
MOQ:	1PCS	Supply Voltage Range:	2.8V~3.6V
Dimensions:	19.1mm 26.6mm 2.6mm	Frequency:	2.4GHz, 6.5GHz
Weight:	3.0g

Application:	UWB
Chipset:	DWM1001C
MOQ:	1PCS
Supply Voltage Range:	2.8V~3.6V
Dimensions:	19.1mm 26.6mm 2.6mm
Frequency:	2.4GHz, 6.5GHz
Weight:	3.0g

DWM1001C UWB Transceiver Module 2.4GHz 6.5GHz Integrated DWM1001 DWM1000 Tracking

Product Description

Specification

item	value
Model Number	DWM1001C
Place of Origin	China
	Shanghai
Brand Name	qt
Chipset	DWM1001C
Supplier Type	Original
Application	UWB
Product name	DWM1001C
MOQ	1PCS
Warranty	1 Year
Condition	100% Original
Supply voltage range	2.8V~3.6V
Dimensions	19.1mm 26.6mm 2.6mm
Frequency	2.4GHz, 6.5GHz
Weight	3.0g
Application	M2M

Products Description

Part Status: ActiveRF Family/Standard:802.15.4, BT
Protocol:BT v4.0, UWB
Frequency:2.4GHz, 6.5GHz
Data Rate:6.8MbpsSerial
Interfaces:I²C, I²S, SPI, UART
Antenna Type: Integrated, Trace
Utilized IC / Part:nRF52832
Voltage - Supply:2.8V ~ 3.6V
Mounting Type: Surface Mount

Overview
* UWB and BT module based on Decawave’s DW1000 IC and Nordic Semiconductor nRF52832 SoC
* Onboard motion sensor and integrated antennas
* Embedded firmware available enabling:
* Accurate UWB-based Real-Time Location Systems (RTLS)
* Data-encrypted network connectivity

Benefits
* Build scalable Two-Way-Ranging (TWR) RTLS systems with up to thousands of tags
* Accelerates product designs for faster time-to-market & reduced development costs
* Same module for anchor, tag, and gateway designs
* No RF design required
* Embedded DRTLS firmware (DWM1001 SS-TWR RTLS) reduces software development effort
* Firmware API to customize embedded user application
* SPI, UART, and BT APIs to access DWM1001 from an external device
* On-board BT for connectivity to phones/tablets
* Low-power hardware and software architecture for longer battery life
* The DWM1001C is the certified version of the module. It is certified for FCC, ISED, and ETSI
