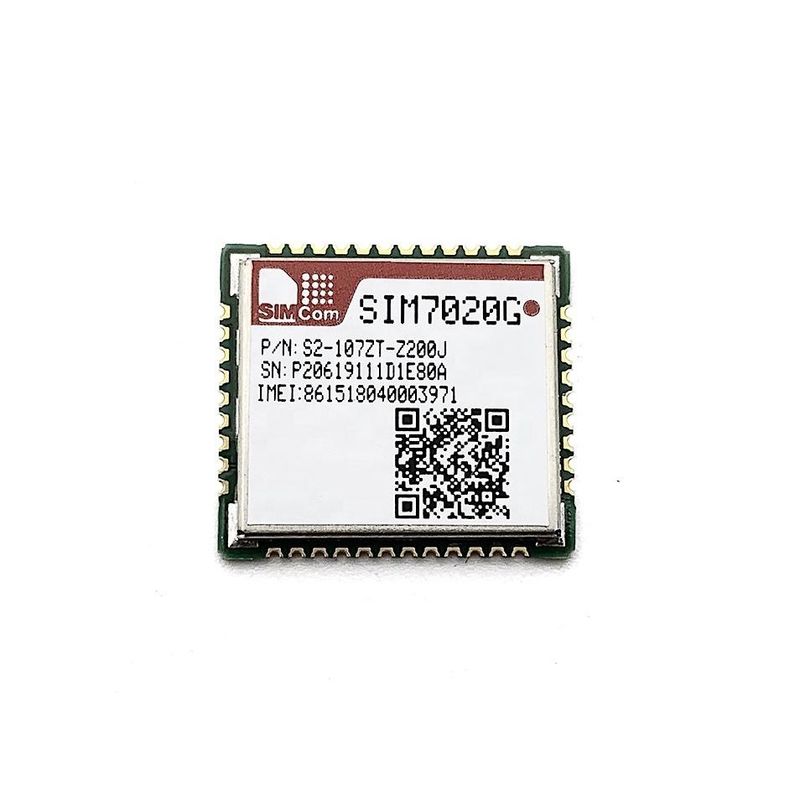

SIMCOM SIM7020E SIM7020G SIM7020C LPWA NB-iot Module SIM7020 series compatible with SIM800C

Name: SIMCOM SIM7020E SIM7020G SIM7020C LPWA NB-iot Module SIM7020 series compatible with SIM800C
Brand: Muz Tech Co.,Ltd
SKU: SIM7020G
Price: 0.68 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SIMCOM

Model Number: SIM7020G

Payment & Shipping Terms

Minimum Order Quantity: 1.0 pieces(Min. Order)

Price: $2.28 - $0.68/piece

Packaging Details: Export standard pack

Delivery Time: 5-15 work days

Payment Terms: L/C, Western Union, T/T, MoneyGram

Supply Ability: 1-100 Pieces per 3 days/101-500 Pieces per 5 days / >500 Pieces per To be negotiated

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                SIM7020C LPWA NB-iot Module, SIM7020E LPWA NB-iot Module, SIM7020G LPWA NB-iot Module


Chipset:	LPWA	Application:	M2M
Dimensions:	17.615.72.3mm	Power Supply:	2.1~3.6V
Protocol:	TCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING/LWM2M/COAP/MQTT/MQTTS	Operating Temperature:	-40℃~85℃

Chipset:	LPWA
Application:	M2M
Dimensions:	17.615.72.3mm
Power Supply:	2.1~3.6V
Protocol:	TCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING/LWM2M/COAP/MQTT/MQTTS
Operating Temperature:	-40℃~85℃

SIMCOM SIM7020E SIM7020G SIM7020C LPWA NB-iot Module SIM7020 series compatible with SIM800C

SIMCOM SIM7020E SIM7020G SIM7020C LPWA NB-iot Module SIM7020 series compatible with SIM800C 0

Product Description

The SIM7020 series has powerful expansibility with abundant interfaces including UART, GPIO, I2C, etc. The SIM7020 series is designed for applications with low latency, and low throughput data communication in various radio propagation conditions.
Due to the unique combination of performance, security, and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health, etc.

Specification

Product		SIM7020E	SIM7020G
Form Factor		LCC, 42PIN	LCC+LGA, 77PIN
Dimensions(mm)		17.615.72.3	17.615.72.3
Frequency Bands	Cat-NB	B1/B3/B5/B8/B20/B28	B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66/B70/B71/B85
Temperature		-40℃ ~ +85℃	-40℃ ~ +85℃
Supply Voltage Range(V)		2.1~ 3.6	2.1~3.6
Power Consumption	@PSM(uA)	3.4	3.4
	@Sleep(mA)	0.4	0.4
	@Idle(mA)	5.6	5.6
	@eDRX=655.36s(uA)	30	30
NB-IoT(kbps)		26.15(DL)/62.5(UL)	126(DL)/150(UL)
Protocol		TCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING/LWM2M/COAP/MQTT/MQTTS	TCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING/LWM2M/COAP/MQTT/MQTTS
Firmware Upgrade		UART/FOTA	UART/FOTA
SIM Card		1.8V/3.0V	1.8V/3.0V
Regulatory		RoHSREACHIMDACE(RED)ATEXTIMDeutsche TelekomVodafone	RoHSREACHRCMTelstraCE(RED)GCFATEXTIMDeutsche TelekomVodafoneFCCPTCRBT-MobileIC
Carrier		Deutsche Telekom	Telstra*/Vodafone/Deutsche T
